Freefly Alta X (DIU Blue Package)
- Order within
We designed Alta X from the ground up to capitalize on the benefits of large, efficient props while maintaining the crisp control and unmatched precision the Alta line is known for.
This special edition Alta X comes with a DIU approved radio controller for a job or client that requires that you fly a DIU blue listed aircraft.
For a PDF quote please submit a request.
What makes this Alta X special?
- The Blue Cube is equipped with firmware that permanently disables WiFi to comply with DIU Blue requirements and can only have Blue qualified firmware installed in the field.
- This kit, as it ships with the UXV Controller, is certified Blue by DIU. For more information about Alta X and Blue sUAS 2.0, check out their website here, and the approval press release here.
Features
- Alta X (RFD900, F9P GPS)

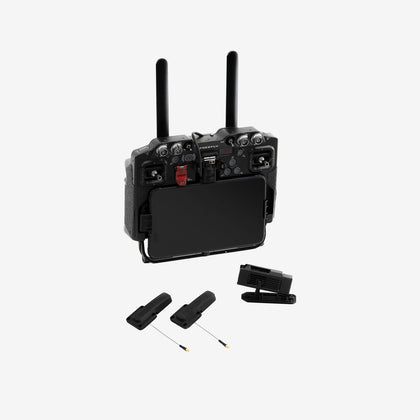

- UXV Navigator Tab with integrated Samsung Tablet**
Shipping Considerations
This package ships in two boxes. One with the Alta X in Travel Case, and one with the UXV Controller.
*This bundle matches our ATO. If you just want the aircraft with the Blue Cube and custom firmware, and not UXV Controller, look here. If the configuration offered in this bundle is changed, the end user accepts responsibility for compliance of the equipment added or modified.
**The UVX Tablet is not compatible with FRX Pro nor Freefly RTK at this time.
We designed Alta X from the ground up to capitalize on the benefits of large, efficient props while maintaining the crisp control and unmatched precision the Alta line is known for.
This special edition Alta X comes with a DIU approved radio controller for a job or client that requires that you fly a DIU blue listed aircraft.
For a PDF quote please submit a request.
What makes this Alta X special?
- The Blue Cube is equipped with firmware that permanently disables WiFi to comply with DIU Blue requirements and can only have Blue qualified firmware installed in the field.
- This kit, as it ships with the UXV Controller, is certified Blue by DIU. For more information about Alta X and Blue sUAS 2.0, check out their website here, and the approval press release here.
Features
- Alta X (RFD900, F9P GPS)
- UXV Navigator Tab with integrated Samsung Tablet**
Shipping Considerations
This package ships in two boxes. One with the Alta X in Travel Case, and one with the UXV Controller.
*This bundle matches our ATO. If you just want the aircraft with the Blue Cube and custom firmware, and not UXV Controller, look here. If the configuration offered in this bundle is changed, the end user accepts responsibility for compliance of the equipment added or modified.
**The UVX Tablet is not compatible with FRX Pro nor Freefly RTK at this time.
Brochure
Download here
NDAA Compliance
Download here
Dimensions
| Unfolded Diameter (not including props) | 1415 mm |
| Unfolded Diameter (Including Props) | 2273 mm |
| Folded Diameter | 877 mm |
| Height | 387 mm |
| Height (Skyview) | 434 mm |
Powerplant
| Number of Motors | 4 |
| Motor Max Continuous Power Output | 100 A |
| Motor Max Instantaneous Peak Power Output | 130 A (>3s) |
| Equivalent Kv | 115 rpm/V |
Propellers
| Model | 33x9in |
| Material | Carbon fiber filled Nylon |
| Propeller Orientation | (2) CW and (2) CCW Props |
| Propeller Type | 840 x 230 mm Folding |
Battery
| Nominal Battery Voltage | 44.4V |
| Battery Connectors | XT-90 |
| Required Minimum Battery Discharge Rating (Per Pack) | 320 Amps per battery (assumes two batteries) 20C for a 16A-hr pack. |
Weight
| Maximum Gross for Takeoff | 34.86 kg / 76.85 lb (see performance charts) |
| Maximum Payload | 15.06 kg / 33.20 lb |
| Typical Standard Empty weight | 10.86 kg / 23.94 lb |
Flight Controller
| Autopilot Name | Custom PX4 flight control stack |
| Flight Modes | Manual, altitude, position, mission, loiter, orbit, return |
| Supported Radios | Futaba, Spektrum, PX4 compatible SBUS and PPM receivers |
| Supported Radio Controller Telemetry Systems | Voltage feed provided for Futaba RX telemetry |
| Minimum Radio Controller Channels Required | 5 (roll, pitch, yaw, throttle, mode) |
| Supported GNSS | GPS/Glonass/Beidou/Galileo |
| Default Data Logging Rate | Varies, 25hz for main flight data |
Lighting and Indication
| Orientation Lights | Boom tip mounted lights |
| Orientation Light Color Options | Colors can be set in software - red, orange, yellow, green, cyan, blue, purple, white, off. |
| FPV Ability | Yes |
- Qty 1 - Alta X Travel Case
- Qty 1 - Alta X Airframe with F9P GPS & PX4 Blue Cube with custom firmware & RFD900*
- Qty 2 - Fuse Mini 297 32V 10A
- Qty 2 - Replacement Battery Fastener
- Qty 2 - Active Blade Bumper (black)
- Qty 2 - Active Blade Bumper (gray)
- Qty 5 - M4x16 Combo Head bolt
- Qty 5 - M4x10 Combo Head bolt
- Qty 5 - M3x8 Combo Head bolt
- Qty 5 - M4x14 Combo Head bolt
- Qty 5 - M4x8 Combo Head bolt
- Qty 1 - USB C to A Cable (1m)
- Qty 1 - UVX Navigator Tab**
- Qty 1 - Pre-installed, integrated Samsung Tablet
- Qty 1 - Pre-installed, integrated RFD 900 radio hardware
*This package ships in two boxes, but it does not ship with any of the following hardware needed for operation: batteries/charger, landing gear, vibration isolation mount or hard payload mount.
**The UVX Tablet is not compatible with FRX Pro nor Freefly RTK at this time.
